  • The Theory and Applications of Compression Testing

    Compression testing is one of the most crucial testing methods used in various industries, including engineering, manufacturing, and materials science. It is a simple yet powerful technique that helps determine the mechanical properties of materials under compressive stress. Here, we will discuss the theory and application of compression testing, and why it is essential to perform such testing.

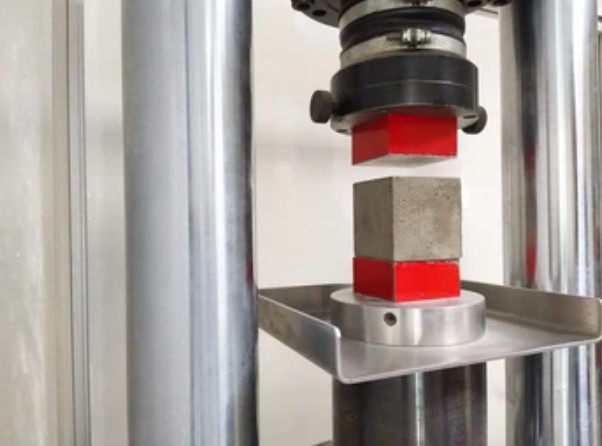

    The Theory and Applications of Compression Testing

    Why Perform a Compression Test?

    Compression testing plays a vital role in evaluating the performance and quality of various materials, including metals, plastics, ceramics, fibers, and composites. By subjecting a material sample to compressive stress, we can measure its deformation, resistance, strength, and other mechanical properties that are critical to its function and durability.

    Moreover, compression testing provides valuable data that can be used to optimize designs, verify specifications, and ensure compliance with industry standards and regulations. For example, in the automotive industry, compression testing is used to evaluate the strength and durability of engine components such as pistons, connecting rods, and crankshafts.

    Compression Testing Experiment

    1. Sample preparation

    The first step in a compression testing experiment is to prepare the test sample. The sample can be either a cylindrical or a cubic specimen. The dimensions of the sample depend on the material being tested, and they should be standardized to ensure repeatability.

    2. Mounting the sample

    The sample is mounted in the compression testing machine using grips or fixtures. The grips should be chosen according to the shape and size of the sample. The machine is then calibrated to ensure accurate readings.

    3. Applying the load

    The compression testing machine applies a load to the sample, which is gradually increased until the sample fails or reaches a predetermined value. The load is measured using a load cell, which converts the mechanical force into an electrical signal that can be read by a computer or a digital display.

    4. Recording deformation

    As the load is applied, the sample deforms. This deformation is recorded in real-time using extensometers or strain gauges attached to the surface of the sample. The deformation can also be measured using the displacement of the machine's crosshead or piston.

    5. Analyzing the data

    The data collected during the compression testing experiment is analyzed using statistical software to determine the material's strength and stiffness. The data can be plotted as a stress-strain curve, which shows the relationship between the applied load and the deformation of the sample. From this curve, the material's elastic limit, yield strength, ultimate strength, and modulus of elasticity can be determined.

    Applications of Compression Testing

    • Construction industry

    In the construction industry, building materials such as concrete, bricks, and blocks undergo compression tests to determine their quality, strength, and durability. It helps to ensure that construction projects are safe and reliable.

    Compression testing is used to test the strength and durability of various components such as engines, transmissions, and suspension systems. It helps to ensure that the components can withstand the pressure and stress they are subjected to during use.

    Compression testing is used to test the compressibility and hardness of tablets and other solid dosage forms. It helps to determine the quality of the product and ensure that it meets the required specifications.

    • Food industry

    In the food industry, compression testing is used to test the hardness of food products such as candy and baked goods. It helps to ensure that the products are of the desired quality and consistency.

    Compression testing is used to test the strength and durability of packaging materials such as cardboard, paper, and plastic. It helps to ensure that the packaging can protect the contents during shipping and handling.

    In conclusion, compression testing is a vital testing technique used in multiple industries. It helps ensure the quality, strength, and durability of products and materials, making them safer and reliable.
